Why D2 Punches and Dies Fail Early — and How to Match the Right Treatment to the Right Failure

• August 20, 2026
• Industrial Production

The problem nobody diagnoses before they buy a solution

A tool room engineer with punches failing at 20,000 strokes when they should be running 80,000 has a specific problem, but the conversation almost always starts with a generic one: “we need better tool life.”

Better tool life is not a diagnosis. Abrasive wear and adhesive galling look nothing alike under magnification, respond to entirely different countermeasures, and are frequently confused because both end up looking like “the edge went away.” Chipping and wear are routinely lumped together even though one is a toughness problem and the other is a hardness problem, and the standard fixes pull in opposite directions.

Before you evaluate any treatment — coatings, PM steel substitution, cryogenic processing, surface peening, or a lubricant change — establish which mechanism is killing your tooling. The rest of this article is organized to help you do that.

What D2 is, and why it fails the way it does

AISI D2 is a high-carbon, high-chromium cold-work tool steel, nominally around 1.5% carbon and 12% chromium. That chemistry produces a large volume fraction of primary chromium carbides, which is exactly why D2 resists abrasion well and exactly why it chips.

Those primary carbides are hard, coarse, and unevenly distributed. They carry the abrasive load. They also act as stress concentrators and crack initiation sites, which is why D2’s toughness is modest compared to powder metallurgy grades of similar hardness. Push the hardness up to improve wear resistance and you make the chipping problem worse. This trade-off is inherent to the alloy, not a heat treat defect.

There is a second consequence of that chemistry that gets far less attention: after quenching, D2 retains a meaningful fraction of austenite. How much depends on austenitizing temperature and quench practice, but it is rarely negligible. Retained austenite is soft, metastable, and transforms to martensite under service stress — accompanied by a volume change.

The four failure modes

1. Abrasive wear (ploughing)

Hard particles or asperities are forced against the tool surface and drag material away. In stamping, this shows up as progressive, relatively uniform material loss on working surfaces and radii.

Abrasive resistance scales with hardness and with carbide volume fraction. This is the mechanism D2 was designed to resist.

2. Adhesive wear (galling and material transfer)

Localized bonding occurs between the tool and the workpiece, workpiece material transfers onto the tool, and the resulting buildup scores subsequent parts. Galling is the failure mode that stops production rather than gradually degrading it — once transfer starts, part quality goes out of tolerance quickly.

Galling is driven by contact pressure, tool surface finish, lubrication, and the chemical affinity between tool and sheet. It is fundamentally a surface and interface phenomenon.

Work by Pereira, Rolfe and Kelly on D2 dies trimming DP980-grade advanced high-strength steel mapped where damage occurs across the die radius, and found ploughing and galling operating simultaneously in distinct zones that correlate with predicted contact pressure and sliding distance. Their conclusion is worth sitting with: overall tool life was governed primarily by the initial transient stage of the process, not by steady-state conditions.

The practical implication is that if galling starts early, tinkering with steady-state parameters will not save you.

3. Fatigue chipping and fracture

Cyclic mechanical and thermal loading initiates cracks, typically at the carbide-matrix interface, which propagate until a piece of the working edge leaves. This is the classic D2 punch failure: the edge does not wear away, it breaks away.

Chipping is a toughness problem. Anything that increases hardness at the expense of toughness makes it worse. Anything that suppresses crack initiation at the surface helps.

4. Dimensional instability

This one gets missed because it does not look like wear at all. Retained austenite transforming to martensite in service produces a volume change, which shows up as loss of clearance, punch-to-die misalignment, and parts drifting out of tolerance while the tooling still looks fine.

If your tooling passes visual inspection but your parts have started failing dimensionally, look here before you look at wear.

Two different levers: substrate and surface

Most disappointing results in this field come from applying a substrate solution to a surface problem, or the reverse.

Deep cryogenic treatment changes the bulk material. It acts through the full section, alters phase composition and carbide population, and does not meaningfully change surface topography.

Micro shot peening changes the surface. It alters topography, introduces compressive residual stress in a near-surface layer, and refines the surface microstructure — but it does not transform the core.

These are complementary, not competing. Knowing which lever your failure responds to is the whole game.

Deep cryogenic treatment: two mechanisms

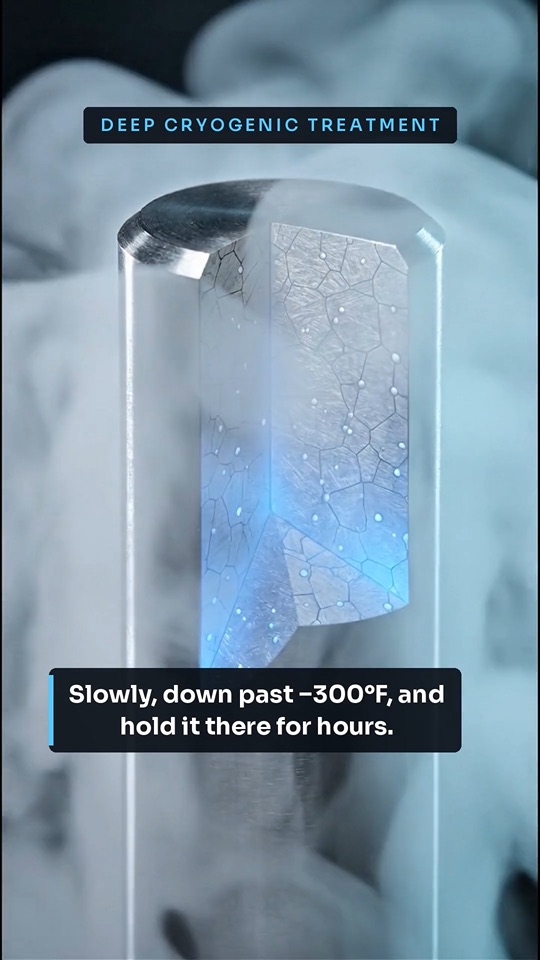

Deep cryogenic treatment (DCT) takes the part to cryogenic temperature — commonly the boiling point of liquid nitrogen at 77 K — typically after quench and before tempering, followed by a temper to condition freshly formed martensite. Two distinct mechanisms are at work, and the difference between them is the single most useful thing to understand about the process.

Retained austenite conversion — fast, and time-independent

Cooling to deep cryogenic temperature drives transformation of retained austenite to martensite through the full section. This is well established and it happens essentially on reaching temperature; holding longer does not convert more.

The evidence is unambiguous. In systematic work on D2 by Das, Dutta and Ray (Cryogenics, 2009), X-ray diffraction of cryogenically processed specimens could not detect retained austenite at all — below roughly 2% by volume — regardless of whether the soak lasted five minutes or 132 hours.

This is the mechanism that addresses failure mode 4. Surberg, Stratton and Lingenhöle examined heat treatment parameters against dimensional stability in D2 specifically (Cryogenics, 2008).

Secondary carbide precipitation — slow, and where the wear resistance comes from

The transformation to martensite at low temperature generates a high density of lattice defects. Carbon segregates to those defects, forming clusters that act as nucleation sites for fine secondary carbides during the subsequent temper. This is a diffusion-controlled process, and unlike austenite conversion it takes time.

The same 2009 study makes this case by elimination, and the argument is clean: austenite conversion is complete and time-independent, yet wear resistance varies enormously with soak duration. Therefore the time-dependent benefit is not coming from austenite conversion. It tracks the carbides instead — secondary carbide volume fraction and population density rise with soak time, peak, and then decline, and wear resistance follows the same curve.

This is why the mechanism debate matters commercially. If the benefit were purely austenite conversion, cryogenic processing would be a brief dip in liquid nitrogen and anyone with a dewar could do it. It isn’t.

The soak time curve, and why “longer is better” is wrong

The most consequential published finding on D2 is that the relationship between soak duration and wear resistance is not monotonic. It rises to a peak and then falls away.

Das, Dutta and Ray processed D2 at 77 K for seven soak durations from effectively zero to 132 hours and measured dry sliding wear at four normal loads under ASTM G99. Average improvement in wear resistance, referenced to a specimen taken to temperature and immediately returned:

Measured against a genuinely non-cryogenically treated control — hardened and tempered only — the 36-hour specimens showed wear resistance improvements of 268% and 201% at the two lower test loads, with bulk hardness up 8.1%.

A shop that reasons “if 36 hours is good, a week must be better” throws away most of the available benefit. That is not a hypothesis. It is published, peer-reviewed, and reproduced across four independent load conditions.

What this study does and does not tell you

It is a laboratory dry sliding test — 4 mm pins against a tungsten-carbide-coated disc, in a severe-delaminative wear regime. It is not a stamping simulation, and the authors are explicit that they did not vary cryogenic temperature, ramp rates, or sliding velocity, and that cooling and heating rates are application-specific and governed by component dimensions and geometric complexity.

That last point is the whole practical problem. A 36-hour figure derived from a 4 mm pin does not transfer unmodified to a punch with varying section thickness, a mixed load of dissimilar parts, or geometry at risk of cracking during the ramp.

Where cryogenic treatment falls short

• Galling. Cryogenic processing does not change surface topography or the tool-to-sheet interface. If workpiece material is transferring onto your punch, this is not the primary lever.
• Chipping. Several studies report reduced impact strength after DCT. If your punches chip rather than wear, converting retained austenite to hard martensite is not obviously in your favor, and the post-cryo temper becomes critical.
• Incorrect heat treatment. Austenitizing and tempering practice determine primary carbide dissolution, retained austenite content, and secondary carbide response. Cryogenic processing applied afterward does not correct errors upstream of it.
• Geometry. Insufficient radius, wrong clearance, or a die design driving excessive contact pressure will keep destroying tools regardless of substrate treatment.

Those first two gaps are where surface treatment enters.

Micro Texturing (micro shot peening) for the surface

MT is a fine particle peening process in which very small media are propelled at high velocity against the finished surface. It is not a coating and adds no dimensional layer. Three effects are described.

Micro-dimple formation and lubricant retention. The impacts produce a dense array of shallow dimples. The intuitive explanation — reduced real contact area — is correct but secondary. The dominant effect in the tribology literature is that each dimple acts as a lubricant reservoir, sustaining film in boundary and mixed lubrication regimes where it would otherwise break down. Computational fluid dynamics modeling of micro-dimple arrays shows positive hydrodynamic pressure generated in the converging portion of each dimple, with the net effect increasing load-carrying capacity through wedging and recirculation. That modeling also identifies an optimum texture density and aspect ratio — more texture is not automatically better. Morphology is a design variable, not a knob to turn up.

For galling and material transfer, this is the direct mechanism.

Compressive residual stress and surface layer refinement. High-velocity impact plastically deforms the near-surface layer, introducing compressive residual stress and improving fatigue strength. In the process as described by its licensees, retained austenite in the surface layer transforms to martensite and the structure recrystallizes and refines, producing a dense, hard, tough near-surface region.

Compressive residual stress suppresses crack initiation. For chipping-dominated failure — the D2 weakness that cryogenic treatment does not help and may aggravate — this is the mechanism that matters.

Increased surface area for coating adhesion. The texture increases effective surface area, improving adhesion of subsequently applied PVD or other coatings. Where a coating is already part of your tooling strategy, peening as a pre-treatment is a separate and additive consideration.

Where MT falls short

• It is a surface treatment, and the effect has a depth limit. Bulk retained austenite through the section is not addressed. If your problem is dimensional drift originating in the core, peening will not solve it.
• Any material removal afterward removes the benefit. Grinding, polishing, or lapping after treatment takes off both the texture and the peak of the compressive stress layer. This has to be the last operation.
• Texture morphology is condition-specific. Published optimum density and aspect ratio figures come from particular modeled or tested conditions and should not be lifted as general specifications.
• It will not fix geometry or heat treat either. Neither process is a substitute for correct fundamentals.

Matching the treatment to the failure

Read across your own failure mode. If you have more than one — and most troubled tooling does — that is the case for combining them.

Combining the two

The processes are sequenced, not blended. Cryogenic treatment acts on the bulk and is performed as part of the thermal cycle, with its temper. Peening is a mechanical surface operation and belongs last, after all grinding and finishing, for the reason noted above.

Two honest caveats on the combination:

• The interaction is not fully characterized in published literature — though we have run both together across our customer base for the past eight years. Both processes transform retained austenite, by different routes — thermally through the section versus deformation-induced at the surface. Whether prior cryogenic treatment reduces what remains available for transformation in the near-surface layer, and whether that changes the peening outcome, is a legitimate open question. We treat it as one, and we would rather test it on your parts than assert an answer.
• Combined benefits are not additive by default. Two processes addressing different mechanisms should improve outcomes where both mechanisms are active — provided the fundamentals are sound and your D2 tooling meets or exceeds specification on heat treatment and geometry.

How to evaluate any of this on your own line

Vendor claims are not evidence about your parts, your press, and your material. Neither, strictly, is a journal paper — laboratory pin-on-disc data tells you about a mechanism, not about your production line. This caution applies with particular force to the surface texturing literature, which is largely lab-scale work on model geometries rather than production die trials.

The only thing that settles it is a controlled split-lot trial:

1. Take one lot. Same heat, same supplier, same hardness spec. Split it.
2. Treat one group. Leave one untreated as the control. If you are evaluating both processes, run four groups: control, CTP Cryo only, peened only, both. Six pieces per group is a workable minimum.
3. Run them under identical conditions. Same press, same die set, same operator, same lubricant, same material.
4. Define the failure criterion in advance. Strokes to first sharpening, strokes to a specific burr height, parts to dimensional rejection — pick one and write it down before you start.
5. Record the failure mode, not just the count. If treatment shifts your failure from edge chipping to uniform wear, that is a meaningful result even if the raw stroke count moves less than you hoped. It also tells you which process to add next.
6. Report the variance, not just the mean. Six data points with a wide spread and six with a narrow spread tell different stories about process reliability.

Running a trial with us

We treat customer-owned parts and offer both deep cryogenic processing and MT micro shot peening, which means we can run the four-group comparison above rather than advocating for whichever process we happen to sell.

You keep the parts, you run the test on your own equipment, and you keep the data.
